Hidrolik Silindir Döküm Boğaz Kepleri

Hidrolik Silindir Döküm Boğaz Kepleri; silindir ön kapağında milin yataklanmasını ve sızdırmazlığını güvenli şekilde sağlayarak sistemin stabil çalışmasına katkı sunar. Dayanıklı döküm yapısı sayesinde yüksek basınç ve ağır çalışma koşullarına karşı direnç gösterir. Hassas işlenmiş yüzeyi ile aşınmayı azaltır, uzun ömürlü ve güvenilir performans sağlar.

SKU: ÇMS-DK-30-16, ÇMS-DK-30-18, ÇMS-DK-30-20, ÇMS-DK-32-16, ÇMS-DK-32-18, ÇMS-DK-32-20

Kategori: Hidrolik Silindir Boğaz Kepleri

Whatsapp Sipariş

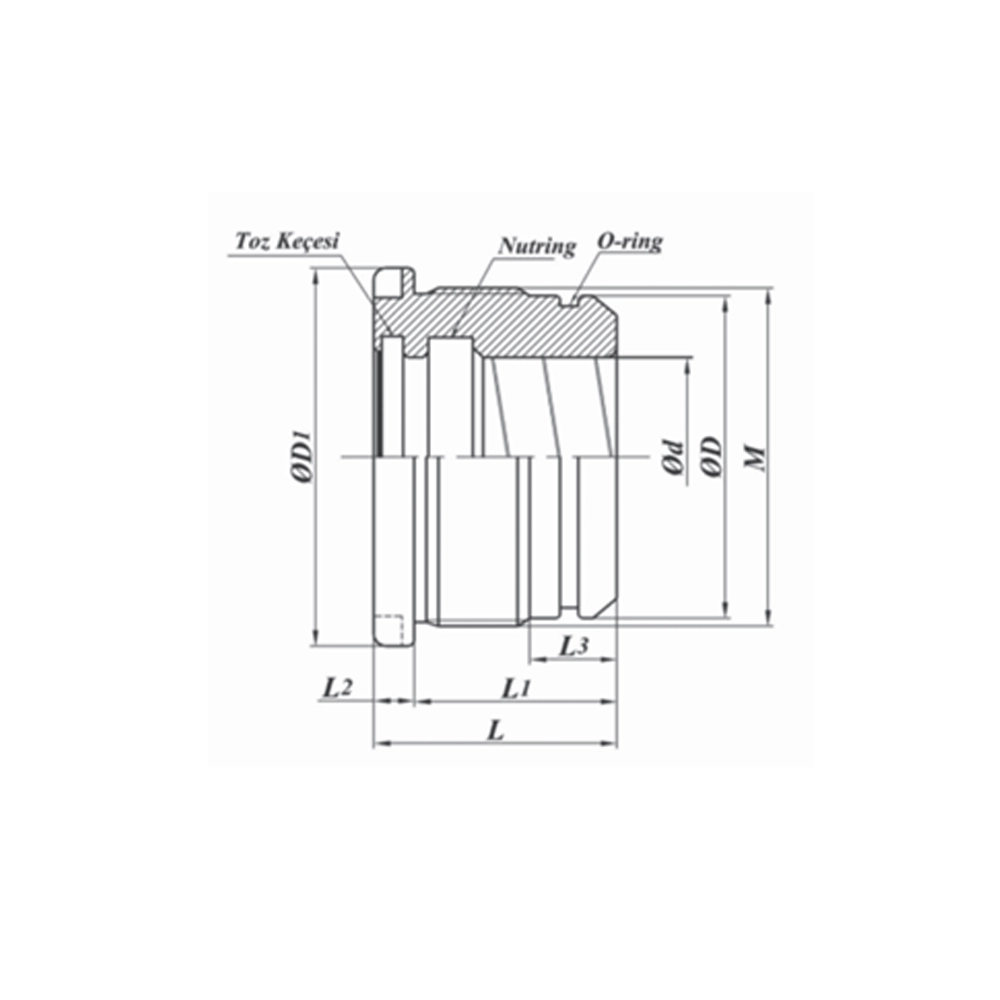

NO Ürün Kodu
Product code
Код продукта		 ØD Ød M L2 L1 L3 L ØD1 Nutring
(k33 PU)		 Toz Keçesi (K06 PU)
Dust Seal
Пылезащита		 O-ring (70shr)
O-rings
O-образные кольца
1 ÇMS-DK-30-16 31 16 M34x1,5 8 32 15 40 40 16x20,5x5 16x22x3/4 2,5x27
2 ÇMS-DK-30-18 31 18 M34x1,5 8 32 15 40 40 18x22x3 18x26x5/7 2,5x27
3 ÇMS-DK-30-20 31 20 M34x1,5 8 32 15 40 40 20x28x6 20x28x5/7 2,5x27
4 ÇMS-DK-32-16 33 16 M36x1,5 8 32 15 40 40 16x20,5x5 16x22x3/4 2,5x29
5 ÇMS-DK-32-18 33 18 M36x1,5 8 32 15 40 40 18x22x3 18x26x5/7 2,5x29
6 ÇMS-DK-32-20 33 20 M36x1,5 8 32 15 40 40 20x30x6 20x28x5/7 2,5x29
7 ÇMS-DK-32-22 33 22 M36x1,6 8 32 15 40 40 22x30x6 22x30x5/7 2,5x30
8 ÇMS-DK-35-20 36 20 M39x1,5 8 32 15 40 45 20x30x6 20x28x5/7 3x31
9 ÇMS-DK-35-22 36 22 M39x1,5 8 32 15 40 45 22x32x6 22x30x5/7 3x31
10 ÇMS-DK-40-16 41 16 M44x1,6 8 32 16 40 50 16x20,5x5 16x22x3/4 3x36
11 ÇMS-DK-40-20 41 20 M44x1,5 8 32 16 40 50 20x30x6 20x28x5/7 3x36
12 ÇMS-DK-40-22 41 22 M44x1,5 8 32 16 40 50 22x32x6 22x30x5/7 3x36
13 ÇMS-DK-40-25 41 25 M44x1,5 8 32 16 40 50 25x35x6 25x33x5/7 3x36
14 ÇMS-DK-40-28 41 28 M44x1,5 8 32 16 40 50 28x38x6 28x36x5/7 3x36
15 ÇMS-DK-45-20 46 20 M49x1,5 8 32 17 40 55 20x30x5 20x28x5/7 3x41
16 ÇMS-DK-45-22 46 22 M49x1,5 8 32 17 40 55 22x32x6 22x30x5/7 3x41
17 ÇMS-DK-45-25 46 25 M49x1,5 8 32 17 40 55 25x35x6 25x33x5/7 3x41
18 ÇMS-DK-45-30 46 30 M49x1,5 8 32 17 40 55 30x40x8 30x38x5/7 3x41
19 ÇMS-DK-50-16 51 16 M54x1,5 8 35 17 43 60 16x20,5x5 16x22x3/4 3,53x44,45
20 ÇMS-DK-50-18 51 18 M54x1,5 8 35 17 43 60 18x22x3 18x26x5/7 3,53x44,45
21 ÇMS-DK-50-20 51 20 M54x1,5 8 35 17 43 60 20x28x6 20x28x5/7 3,53x44,45
22 ÇMS-DK-50-22 51 22 M54x1,5 8 35 17 43 60 22x32x6 22x30x5/7 3,53x44,45
23 ÇMS-DK-50-25 51 25 M54x1,5 8 35 17 43 60 25x35x6 25x33x5/7 3,53x44,45
24 ÇMS-DK-50-28 51 28 M54x1,5 8 35 17 43 60 28x38x6 28x36x5/7 3,53x44,45
25 ÇMS-DK-50-30 51 30 M54x1,5 8 35 17 43 60 30x40x8 30x38x5/7 3,53x44,45
26 ÇMS-DK-50-32 51 32 M54x1,5 8 35 17 43 60 32x42x8 32x40x5/7 3,53x44,45
27 ÇMS-DK-50-35 51 35 M54x1,5 8 35 17 43 60 35x45x8 35x43x5/7 3,53x44,45
28 ÇMS-DK-50-36 51 36 M54x1,5 8 35 17 43 60 36x46x8 36x44x5/8 3,53x44,45
29 ÇMS-DK-50-38 51 38 M54x1,5 8 35 17 43 60 38x45x6 38x46x5/7 3,53x44,45
30 ÇMS-DK-55-25 56 25 M59x1,5 8 35 17 43 65 25x35x6 25x33x5/7 3,53x50,40
31 ÇMS-DK-55-30 56 30 M59x1,5 8 35 17 43 65 30x40x8 30x38x5/7 3,53x50,40
32 ÇMS-DK-55-35 56 35 M59x1,5 8 35 17 43 65 35x45x8 35x43x5/7 3,53x50,40
33 ÇMS-DK-55-40 56 35 M59x1,5 8 35 17 43 65 40x45x10 45x55x5/7 3,53x50,40
34 ÇMS-DK-60-25 61 25 M64x1,5 10 40 20 50 70 25x35x6 25x33x5/7 3,53x53,57
35 ÇMS-DK-60-28 61 28 M64x1,5 10 40 20 50 70 28x38x6 28x36x5/7 3,53x53,57
36 ÇMS-DK-60-30 61 30 M64x1,5 10 40 20 50 70 30x40x8 30x38x5/7 3,53x53,57
37 ÇMS-DK-60-32 61 32 M64x1,5 10 40 20 50 70 32x42x8 32x40x5/7 3,53x53,57
38 ÇMS-DK-60-35 61 35 M64x1,5 10 40 20 50 70 35x45x8 35x43x5/7 3,53x53,57
39 ÇMS-DK-60-36 61 36 M64x1,5 10 40 20 50 70 36x46x8 36x44x5/7 3,53x53,57
40 ÇMS-DK-60-40 61 40 M64x1,5 10 40 20 50 70 40x50x10 40x48x5/7 3,53x53,57
41 ÇMS-DK-60-45 61 45 M64x1,5 10 40 20 50 70 45x55x10 45x55x5/7 3,53x53,57
42 ÇMS-DK-63-25 64 25 M69x1,5 10 40 20 50 75 25x35x6 25x33x5/7 3,53x57,15
43 ÇMS-DK-63-28 64 28 M69x1,5 10 40 20 50 75 28x38x6 28x36x5/7 3,53x57,15
44 ÇMS-DK-63-30 64 30 M69x1,5 10 40 20 50 75 30x40x8 30x38x5/7 3,53x57,15
45 ÇMS-DK-63-35 64 35 M69x1,5 10 40 20 50 75 35x45x8 35x43x5/7 3,53x57,15
46 ÇMS-DK-63-36 64 36 M69x1,5 10 40 20 50 75 36x46x8 36x44x5/7 3,53x57,15
47 ÇMS-DK-63-40 64 40 M69x1,5 10 40 20 50 75 40x50x10 40x48x5/7 3,53x57,15
48 ÇMS-DK-63-45 64 45 M69x1,5 10 40 20 50 75 45x55x10 45x55x5/7 3,53x57,15
49 ÇMS-DK-63-50 64 50 M69x1,5 10 40 20 50 75 50x58x8 50x60x5/7 3,53x57,15
50 ÇMS-DK-65-30 66 30 M69x1,5 10 50 22 60 75 30x40x8 30x38x5/7 3,53x60,33
51 ÇMS-DK-65-35 66 35 M69x1,5 10 50 22 60 75 35x45x8 35x43x5/7 3,53x60,33
52 ÇMS-DK-65-40 66 40 M69x1,5 10 50 22 60 75 40x50x10 40x48x5/7 3,53x60,33
53 ÇMS-DK-65-45 66 45 M69x1,5 10 50 22 60 75 45x55x10 45x55x5/7 3,53x60,33
54 ÇMS-DK-65-50 66 50 M69x1,5 10 50 22 60 75 50x60x10 50x60x5/7 3,53x60,33
55 ÇMS-DK-65-55 66 55 M69x1,5 10 50 22 60 75 55x65x10 55x65x5/7 3,53x60,33
56 ÇMS-DK-70-25 71 25 M74x1,5 10 50 22 60 80 25x35x6 25x33x5/7 3,53x65,10
57 ÇMS-DK-70-28 71 28 M74x1,5 10 50 22 60 80 28x38x6 28x36x5/7 3,53x65,10
58 ÇMS-DK-70-30 71 30 M74x1,5 10 50 22 60 80 30x40x8 30x38x5/7 3,53x65,10
59 ÇMS-DK-70-35 71 35 M74x1,5 10 50 22 60 80 35x45x8 35x43x5/7 3,53x65,10
60 ÇMS-DK-70-36 71 36 M74x1,5 10 50 22 60 80 36x46x8 36x44x5/8 3,53x65,10
61 ÇMS-DK-70-40 71 40 M74x1,5 10 50 22 60 80 40x50x10 40x48x5/7 3,53x65,10
62 ÇMS-DK-70-45 71 45 M74x1,5 10 50 22 60 80 45x55x10 45x55x5/7 3,53x65,10
63 ÇMS-DK-70-50 71 50 M74x1,5 10 50 22 60 80 50x60x10 50x60x5/7 3,53x65,10
64 ÇMS-DK-70-55 71 55 M74x1,5 10 50 22 60 80 55x65x10 55x65x5/7 3,53x65,10
65 ÇMS-DK-70-30/Ø85 71 30 M74x1,5 10 50 22 60 80 30x40x8 30x38x5/7 3,53x65,10
66 ÇMS-DK-70-35/Ø85 71 35 M74x1,5 10 50 22 60 80 35x45x8 35x43x5/7 3,53x65,10
67 ÇMS-DK-70-40/Ø85 71 40 M74x1,5 10 50 22 60 80 40x50x10 40x48x5/7 3,53x65,10
68 ÇMS-DK-70-45/Ø85 71 45 M74x1,5 10 50 22 60 80 45x55x10 45x55x5/7 3,53x65,10
69 ÇMS-DK-70-50/Ø85 71 50 M74x1,5 10 50 22 60 80 50x60x10 50x60x5/7 3,53x65,10
70 ÇMS-DK-70-55/Ø85 71 55 M74x1,5 10 50 22 60 80 55x65x10 55x65x5/7 3,53x65,10
71 ÇMS-DK-75-30 76 30 M80x1,5 10 50 22 60 85 30x40x8 30x38x5/7 3,53x69,85
72 ÇMS-DK-75-35 76 35 M80x1,5 10 50 22 60 85 35x45x8 35x43x5/7 3,53x69,85
73 ÇMS-DK-75-40 76 40 M80x1,5 10 50 22 60 85 40x50x10 40x48x5/7 3,53x69,85
74 ÇMS-DK-75-45 76 45 M80x1,5 10 50 22 60 85 45x55x10 45x55x5/7 3,53x69,85
75 ÇMS-DK-75-50 76 50 M80x1,5 10 50 22 60 85 50x60x10 50x60x5/7 3,53x69,85
76 ÇMS-DK-75-55 76 55 M80x1,5 10 50 22 60 85 55x65x10 55x65x5/7 3,53x69,85
77 ÇMS-DK-75-60 76 60 M80x1,5 10 50 22 60 85 60x70x10 60x70x5/7 3,53x69,85
78 ÇMS-DK-80-30 81 30 M85x2 10 50 22 60 95 30x40x8 30x38x5/7 3,53x74,61
79 ÇMS-DK-80-35 81 35 M85x2 10 50 22 60 95 35x45x8 35x43x5/7 3,53x74,61
80 ÇMS-DK-80-36 81 36 M85x2 10 50 22 60 95 36x46x8 36x44x5/7 3,53x74,61
81 ÇMS-DK-80-40 81 40 M85x2 10 50 22 60 95 40x50x10 40x48x5/7 3,53x74,61
82 ÇMS-DK-80-42 81 42 M85x2 10 50 22 60 95 42x52x10 42x50x5/7 3,53x74,61
83 ÇMS-DK-80-45 81 45 M85x2 10 50 22 60 95 45x55x10 45x55x5/7 3,53x74,61
84 ÇMS-DK-80-50 81 50 M85x2 10 50 22 60 95 50x60x10 50x60x5/7 3,53x74,61
85 ÇMS-DK-80-55 81 55 M85x2 10 50 22 60 95 55x65x10 55x65x5/7 3,53x74,61
86 ÇMS-DK-80-56 81 56 M85x2 10 50 22 60 95 56x66x10 56x66x5/7 3,53x74,61
87 ÇMS-DK-80-60 81 60 M85x2 10 50 22 60 95 60x70x10 60x70x5/7 3,53x74,61
88 ÇMS-DK-80-65 81 65 M85x2 10 50 22 60 95 65x75x10 65x75x5/7 3,53x74,61
89 ÇMS-DK-85-35 86 35 M90x2 10 50 24 60 100 35x45x8 35x43x5/7 4x78
90 ÇMS-DK-85-40 86 40 M90x2 10 50 24 60 100 40x50x10 40x48x5/7 4x78
91 ÇMS-DK-85-45 86 45 M90x2 10 50 24 60 100 45x55x10 45x55x5/7 4x78
92 ÇMS-DK-85-50 86 50 M90x2 10 50 24 60 100 50x60x10 50x60x5/7 4x78
93 ÇMS-DK-85-55 86 55 M90x2 10 50 24 60 100 55x65x10 55x65x5/7 4x78
94 ÇMS-DK-85-60 86 60 M90x2 10 50 24 60 100 60x70x10 60x70x5/7 4x78
95 ÇMS-DK-85-65 86 65 M90x2 10 50 24 60 100 65x75x10 65x75x5/7 4x78
96 ÇMS-DK-90-40 91 40 M95x2 10 50 24 60 105 40x50x10 40x48x5/7 4x84
97 ÇMS-DK-90-45 91 45 M95x2 10 50 24 60 105 45x55x10 45x55x5/7 4x84
98 ÇMS-DK-90-50 91 50 M95x2 10 50 24 60 105 50x60x10 50x60x5/7 4x84
99 ÇMS-DK-90-55 91 55 M95x2 10 50 24 60 105 55x65x10 55x65x5/7 4x84
100 ÇMS-DK-90-60 91 60 M95x2 10 50 24 60 105 60x70x10 60x70x5/7 4x84
101 ÇMS-DK-90-65 91 65 M95x2 10 50 24 60 105 65x75x10 65x75x5/7 4x84
102 ÇMS-DK-90-70 91 70 M95x2 10 50 24 60 105 70x80x12 70x80x5/7 4x84
103 ÇMS-DK-100-30 101 30 M105x2 12 70 32 82 115 30x40x8 30x38x5/7 5x90
104 ÇMS-DK-100-32 101 32 M105x2 12 70 32 82 115 32x40x8 32x40x5/7 5x90
105 ÇMS-DK-100-35 101 35 M105x2 12 70 32 82 115 35x45x8 35x43x5/7 5x90
106 ÇMS-DK-100-38 101 38 M105x2 12 70 32 82 115 38x48x8 38x48x9 5x90
107 ÇMS-DK-100-40 101 40 M105x2 12 70 32 82 115 40x50x10 40x48x5/7 5x90
108 ÇMS-DK-100-45 101 45 M105x2 12 70 32 82 115 45x55x10 45x55x5/7 5x90
109 ÇMS-DK-100-50 101 50 M105x2 12 70 32 82 115 50x60x10 50x60x5/7 5x90
110 ÇMS-DK-100-55 101 55 M105x2 12 70 32 82 115 55x65x10 55x65x5/7 5x90
111 ÇMS-DK-100-56 101 56 M105x2 12 70 32 82 115 56x66x10 56x66x5/7 5x90
112 ÇMS-DK-100-60 101 60 M105x2 12 70 32 82 115 60x70x10 60x70x5/7 5x90
113 ÇMS-DK-100-65 101 65 M105x2 12 70 32 82 115 65x75x10 65x75x5/7 5x90
114 ÇMS-DK-100-70 101 70 M105x2 12 70 32 82 115 70x80x12 70x80x5/7 5x90
115 ÇMS-DK-100-75 101 75 M105x2 12 70 32 82 115 75x85x12 75x87x7/12 5x90
116 ÇMS-DK-100-80 101 80 M105x2 12 70 32 82 115 80x88x11,5 80x92x7/12 5x90
117 ÇMS-DK-110-50 111 50 M115x2 12 70 32 82 130 50x60x10 50x60x5/7 5x100
118 ÇMS-DK-110-55 111 55 M115x2 12 70 32 82 130 55x65x10 55x65x5/7 5x100
119 ÇMS-DK-110-60 111 60 M115x2 12 70 32 82 130 60x70x10 60x70x5/7 5x100
120 ÇMS-DK-110-65 111 65 M115x2 12 70 32 82 130 65x75x10 65x75x5/7 5x100
121 ÇMS-DK-110-70 111 70 M115x2 12 70 32 82 130 70x80x12 70x80x5/7 5x100
122 ÇMS-DK-110-75 111 75 M115x2 12 70 32 82 130 75x85x12 75x87x7/12 5x100
123 ÇMS-DK-110-80 111 80 M115x2 12 70 32 82 130 80x90x12 80x92x7/12 5x100
124 ÇMS-DK-115-50 111 50 M120x2 12 70 32 82 135 50x60x10 50x60x5/7 5x105
125 ÇMS-DK-115-55 111 55 M120x2 12 70 32 82 135 55x65x10 55x65x5/7 5x105
126 ÇMS-DK-115-60 116 60 M120x2 12 70 32 82 135 60x70x10 60x70x5/7 5x105
127 ÇMS-DK-115-65 116 65 M120x2 12 70 32 82 135 65x75x10 65x75x5/7 5x105
128 ÇMS-DK-115-70 116 70 M120x2 12 70 32 82 135 70x80x12 70x80x5/7 5x105
129 ÇMS-DK-115-75 116 75 M120x2 12 70 32 82 135 75x85x12 75x87x7/12 5x105
130 ÇMS-DK-115-80 116 80 M120x2 12 70 32 82 135 80x90x12 80x92x7/12 5x105
131 ÇMS-DK-120-50 121 50 M125x2 12 70 32 82 140 50x60x10 50x60x5/7 5x110
132 ÇMS-DK-120-55 121 55 M125x2 12 70 32 82 140 55x65x10 55x65x5/7 5x110
133 ÇMS-DK-120-56 121 56 M125x2 12 70 32 82 140 56x66x10 56x66x5/7 5x110
134 ÇMS-DK-120-60 121 60 M125x2 12 70 32 82 140 60x70x10 60x70x5/7 5x110
135 ÇMS-DK-120-65 121 65 M125x2 12 70 32 82 140 65x75x10 65x75x5/7 5x110
136 ÇMS-DK-120-70 121 70 M125x2 12 70 32 82 140 70x80x12 70x80x5/7 5x110
137 ÇMS-DK-120-75 121 75 M125x2 12 70 32 82 140 75x85x12 75x87x7/12 5x110
138 ÇMS-DK-120-80 121 80 M125x2 12 70 32 82 140 80x90x12 80x92x7/12 5x110
139 ÇMS-DK-120-85 121 85 M125x2 12 70 32 82 140 85x95x12 85x97x7/12 5x110
140 ÇMS-DK-120-90 121 90 M125x2 12 70 32 82 140 90x100x12 90x102x7/12 5x110
141 ÇMS-DK-125-50 126 50 M130x2 12 70 32 82 145 50x60x10 50x60x5/7 5x115
142 ÇMS-DK-125-55 126 55 M130x2 12 70 32 82 145 55x65x10 55x65x5/7 5x115
143 ÇMS-DK-125-56 126 56 M130x2 12 70 32 82 145 56x66x10 56x66x5/7 5x115
144 ÇMS-DK-125-60 126 60 M130x2 12 70 32 82 145 60x70x10 60x70x5/7 5x115
145 ÇMS-DK-125-65 126 65 M130x2 12 70 32 82 145 65x75x10 65x75x5/7 5x115
146 ÇMS-DK-125-70 126 70 M130x2 12 70 32 82 145 70x80x12 70x80x5/7 5x115
147 ÇMS-DK-125-75 126 75 M130x2 12 70 32 82 145 75x85x12 75x87x7/12 5x115
148 ÇMS-DK-125-80 126 80 M130x2 12 70 32 82 145 80x90x12 80x92x7/12 5x115
149 ÇMS-DK-125-85 126 85 M130x2 12 70 32 82 145 85x95x12 85x97x7/12 5x115
150 ÇMS-DK-125-90 126 90 M130x2 12 70 32 82 145 90x100x12 90x102x7/12 5x115
151 ÇMS-DK-125-100 126 100 M130x2 12 70 32 82 145 100x120x12 100x112x7/12 5x115
152 ÇMS-DK-130-60 131 60 M135x2 12 90 32 102 150 60x70x10 60x70x5/7 5x120
153 ÇMS-DK-130-65 131 65 M135x2 12 90 32 102 150 65x75x10 65x75x5/7 5x120
154 ÇMS-DK-130-70 131 70 M135x2 12 90 32 102 150 70x80x12 70x80x5/7 5x120
155 ÇMS-DK-130-80 131 80 M135x2 12 90 32 102 150 80x90x12 80x92x7/12 5x120
156 ÇMS-DK-130-85 131 85 M135x2 12 90 32 102 150 85x95x12 85x97x7/12 5x120
157 ÇMS-DK-130-90 131 90 M135x2 12 90 32 102 150 90x100x12 90x102x7/12 5x120
158 ÇMS-DK-130-100 131 100 M135x2 12 90 32 102 150 100x115x12 100x112x7/12 5x120
159 ÇMS-DK-140-60 141 60 M145x2 12 90 32 102 160 60x70x10 60x70x5/7 5x130
160 ÇMS-DK-140-65 141 65 M145x2 12 90 32 102 160 65x75x10 65x75x5/7 5x130
161 ÇMS-DK-140-70 141 70 M145x2 12 90 32 102 160 70x80x12 70x80x5/7 5x130
162 ÇMS-DK-140-80 141 80 M145x2 12 90 32 102 160 80x90x12 80x92x7/12 5x130
163 ÇMS-DK-140-85 141 85 M145x2 12 90 32 102 160 85x95x12 85x97x7/12 5x130
164 ÇMS-DK-140-90 141 90 M145x2 12 90 32 102 160 90x100x12 90x102x7/12 5x130
165 ÇMS-DK-140-95 141 95 M145x2 12 90 32 102 160 95x105x12 95x107x7/12 5x130
166 ÇMS-DK-140-100 141 100 M145x2 12 90 32 102 160 100x120x12 100x112x7/12 5x130
167 ÇMS-DK-140-110 141 110 M145x2 12 90 32 102 160 110x125x12 110x122x7/12 5x130
168 ÇMS-DK-140-120 141 120 M145x2 12 90 32 102 160 120x140x14,6 120x132x7/12 5x130
169 ÇMS-DK-150-60 151 60 M155x2 12 90 32 102 170 60x70x10 60x70x5/7 5x140
170 ÇMS-DK-150-65 151 65 M155x2 12 90 32 102 170 65x75x10 65x75x5/7 5x140
171 ÇMS-DK-150-70 151 70 M155x2 12 90 32 102 170 70x80x12 70x80x5/7 5x140
172 ÇMS-DK-150-80 151 80 M155x2 12 90 32 102 170 80x90x12 80x92x7/12 5x140
173 ÇMS-DK-150-90 151 90 M155x2 12 90 32 102 170 90x100x12 90x102x7/12 5x140
174 ÇMS-DK-150-100 151 100 M155x2 12 90 32 102 170 100x120x12 100x112x7/12 5x140
175 ÇMS-DK-150-110 151 110 M155x2 12 90 32 102 170 110x125x12 110x122x7/12 5x140
176 ÇMS-DK-150-120 151 120 M155x2 12 90 32 102 170 120x140x14,6 120x132x7/12 5x140
177 ÇMS-DK-160-60 161 60 M165x2 12 90 32 102 180 60x70x10 60x70x5/7 5x150
178 ÇMS-DK-160-65 161 65 M165x2 12 90 32 102 180 65x75x10 65x75x5/7 5x150
179 ÇMS-DK-160-70 161 70 M165x2 12 90 32 102 180 70x80x12 70x80x5/7 5x150
180 ÇMS-DK-160-80 161 80 M165x2 12 90 32 102 180 80x90x12 80x92x7/12 5x150
181 ÇMS-DK-160-90 161 90 M165x2 12 90 32 102 180 90x100x12 90x102x7/12 5x150
182 ÇMS-DK-160-100 161 100 M165x2 12 90 32 102 180 100x120x12 100x112x7/12 5x150
183 ÇMS-DK-160-110 161 110 M165x2 12 90 32 102 180 110x125x12 110x122x7/12 5x150
184 ÇMS-DK-160-120 161 120 M165x2 12 90 32 102 180 120x140x14,6 120x132x7/12 5x150
185 ÇMS-DK-180-80 181 80 M185x2 14 90 32 104 200 80x90x12 80x92x7/12 5x170
186 ÇMS-DK-180-85 181 85 M185x2 14 90 32 104 200 85x95x12 85x97x7/12 5x170
187 ÇMS-DK-180-90 181 90 M185x2 14 90 32 104 200 90x100x12 90x102x7/12 5x170
188 ÇMS-DK-180-100 181 100 M185x2 14 90 32 104 200 100x120x12 100x112x7/12 5x170
189 ÇMS-DK-180-110 181 110 M185x2 14 90 32 104 200 110x125x12 110x122x7/12 5x170
190 ÇMS-DK-180-120 181 120 M185x2 14 90 32 104 200 120x140x14,6 120x132x7/12 5x170
191 ÇMS-DK-180-130 181 130 M185x2 14 90 32 104 200 130x150x15 130x145x10/16 5x170
192 ÇMS-DK-180-140 181 140 M185x2 14 90 32 104 200 140x160x15 140x155x10/16 5x170
193 ÇMS-DK-200-80 201 80 M205x2 14 90 32 104 220 80x90x12 80x92x7/12 5x190
194 ÇMS-DK-200-90 201 90 M205x2 14 90 32 104 220 90x100x12 90x102x7/12 5x190
195 ÇMS-DK-200-100 201 100 M205x2 14 90 32 104 220 100x120x12 100x112x7/12 5x190
196 ÇMS-DK-200-110 201 110 M205x2 14 90 32 104 220 110x125x12 110x122x7/12 5x190
197 ÇMS-DK-200-120 201 120 M205x2 14 90 32 104 220 120x140x14,6 120x132x7/12 5x190
198 ÇMS-DK-200-140 201 140 M205x2 14 90 32 104 220 140x160x15 140x155x10/16 5x190
199 ÇMS-DK-200-160 201 160 M205x2 14 90 32 104 220 160x180x15 160x175x10/16 5x190
200 ÇMS-DK-220-100 221 100 M227x3 20 100 50 120 250 100x120x15 100x112x7/12 5,7x209,2
201 ÇMS-DK-220-110 221 110 M227x3 20 100 50 120 250 110x130x15 110x122x7/12 5,7x209,2
202 ÇMS-DK-220-120 221 120 M227x3 20 100 50 120 250 120x140x14,6 120x132x7/12 5,7x209,2
203 ÇMS-DK-220-130 221 130 M227x3 20 100 50 120 250 130x150x15 130x145x10/16 5,7x209,2
204 ÇMS-DK-220-140 221 140 M227x3 20 100 50 120 250 140x160x15 140x155x10/16 5,7x209,2
205 ÇMS-DK-220-150 221 150 M227x3 20 100 50 120 250 150x170x15 150x165x10/16 5,7x209,2
206 ÇMS-DK-220-160 221 160 M258x3 20 100 50 120 300 160x180x15 160x175x10/16 5,7x239,9
207 ÇMS-DK-220-180 221 180 M258x3 20 100 50 120 300 180x200x15 180x195x9,5/14 5,7x239,9
208 ÇMS-DK-250-100 251 100 M258x3 20 100 50 120 300 100x120x15 100x112x7/12 5,7x239,9
209 ÇMS-DK-250-110 251 110 M258x3 20 100 50 120 300 110x130x15 110x122x7/12 5,7x239,9
210 ÇMS-DK-250-120 251 120 M258x3 20 100 50 120 300 120x140x14,6 120x132x7/12 5,7x239,9
211 ÇMS-DK-250-130 251 130 M258x3 20 100 50 120 300 130x150x15 130x145x10/16 5,7x239,9
212 ÇMS-DK-250-140 251 140 M258x3 20 100 50 120 300 140x160x15 140x155x10/16 5,7x239,9
213 ÇMS-DK-250-150 251 150 M258x3 20 100 50 120 300 150x170x15 150x165x10/16 5,7x239,9
214 ÇMS-DK-250-160 251 160 M258x3 20 100 50 120 300 160x180x15 160x175x10/16 5,7x239,9
215 ÇMS-DK-250-180 251 180 M258x3 20 100 50 120 300 180x200x15 180x195x9,5/14 5,7x239,9
