Hidrolik Silindir Cetop Arka Kafa

Hidrolik Silindir CETOP Ön Kafaları, CETOP standartlarına uygun olarak üretilen ve hidrolik silindirlerin ön kısmını kapatan, montaj ve bağlantı noktalarını sağlayan özel silindir kafalarıdır.

SKU: ÇMS-CTP-40-25, ÇMS-CTP-40-28, ÇMS-CTP-50-25, ÇMS-CTP-50-28, ÇMS-CTP-50-30

Kategori: Hidrolik Silindir Cetop Arka Kafaları

Whatsapp Sipariş

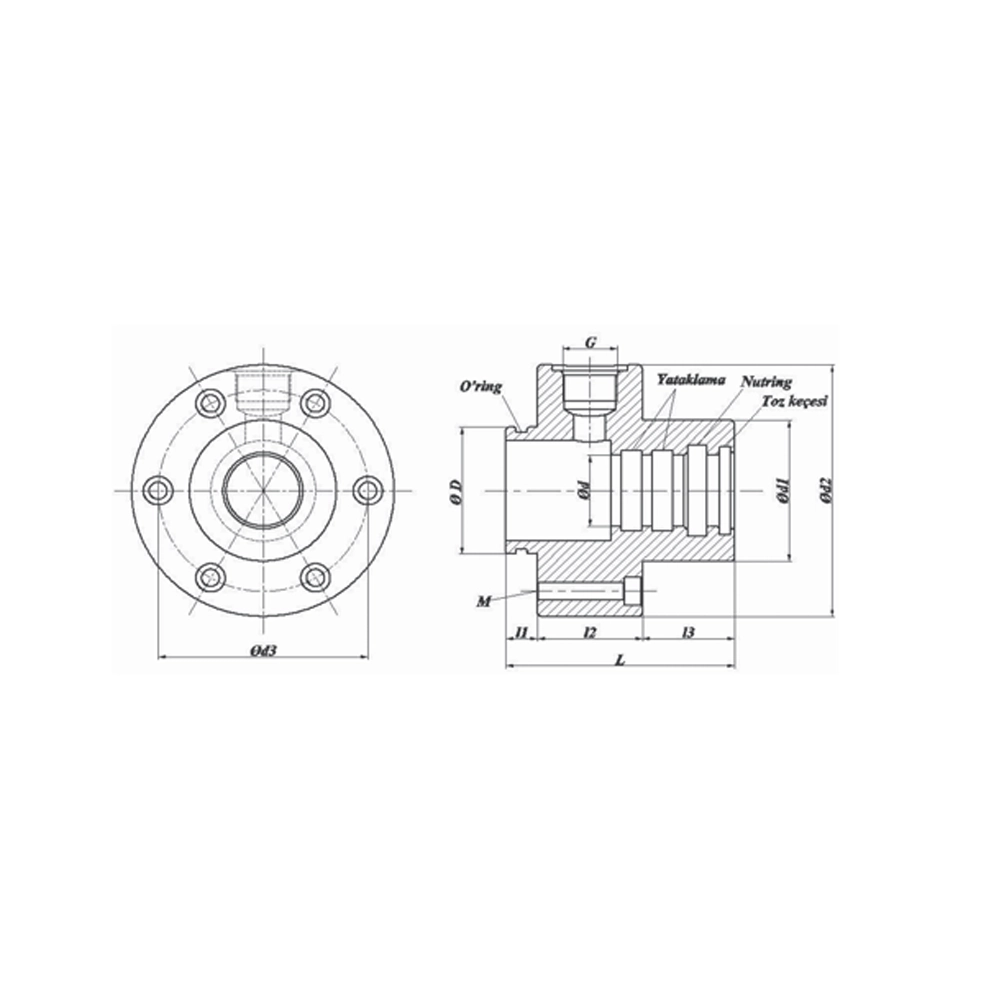

NO Ürün Kodu
Product code
Код продукта		 Boru Ø D d d1 d2 d3 L l1 l2 l3 G M Nutring
(k33 PU)		 Toz Keçesi (K06 PU)
Dust Seal / Пылезащита		 O-ring (70shr)
O-rings		 Yataklama (K68)
Bearing (K68)
1 ÇMS-CTP-40-25 40-50 40 25 50 100 75 79 15 40 24 R 3/8" M8x6ad 25x35x6 25x33x5/7 35,2x3 25x30x5,4
2 ÇMS-CTP-40-28 40-50 40 28 50 100 75 79 15 40 24 R 3/8" M8x6ad 28x38x6 28x36x5/7 35,2x3 28x33x5,5
3 ÇMS-CTP-50-25 40-50 50 25 60 110 85 89 15 50 24 R 1/2" M8x6ad 25x36x6 25x33x5/7 45x3 25x30x5,4
4 ÇMS-CTP-50-28 50-60 50 28 60 110 85 89 15 50 24 R 1/2" M8x6ad 28x38x6 28x36x5/7 45x3 28x33x5,5
5 ÇMS-CTP-50-30 50-60 50 30 60 110 85 89 15 50 24 R 1/2" M8x6ad 30x40x8 30x38x5/7 45x3 30x35x5,4
6 ÇMS-CTP-50-35 50-60 50 35 60 110 85 89 15 50 24 R 1/2" M8x6ad 35x45x8 35x43x5/7 45x3 35x40x5,4
7 ÇMS-CTP-50-36 50-60 50 36 60 110 85 89 15 50 24 R 1/2" M8x6ad 36x46x8 36x44x5/7 45x3 36x41x5,4
8 ÇMS-CTP-63-35 63-75 63 35 70 125 100 94 15 50 29 R 1/2" M8x6ad 35x45x8 35x43x5/7 58x3 35x40x6,1
9 ÇMS-CTP-63-40 63-75 63 40 70 125 100 94 15 50 29 R 1/2" M8x6ad 40x50x10 40x48x5/7 58x3 40x45x9,5
10 ÇMS-CTP-63-45 63-75 63 45 70 125 100 94 15 50 29 R 1/2" M8x6ad 45x55x10 45x55x5/7 58x3 45x50x5,4
11 ÇMS-CTP-70-40 70-85 70 40 80 130 110 102 16 50 36 R 1/2" M8x6ad 40x50x10 40x48x5/7 68x4 40x45x5,4
12 ÇMS-CTP-70-45 70-85 70 45 80 130 110 102 16 50 36 R 1/2" M8x6ad 45x55x10 45x55x5/7 68x4 45x50x9,5
13 ÇMS-CTP-70-50 70-85 70 50 80 130 110 102 16 50 36 R 1/2" M8x6ad 50x60x10 50x60x5/7 68x4 50x55x9,5
14 ÇMS-CTP-80-40 80-95 80 40 85 135 115 102 16 50 36 R 1/2" M8x6ad 40x50x10 40x48x5/7 73x4 40x45x9,5
15 ÇMS-CTP-80-45 80-95 80 45 85 135 115 102 16 50 36 R 1/2" M8x6ad 45x55x10 45x55x5/7 73x4 45x50x9,5
16 ÇMS-CTP-80-50 80-95 80 50 85 135 115 102 16 50 36 R 1/2" M8x6ad 50x60x10 50x60x5/7 73x4 50x55x9,5
17 ÇMS-CTP-80-55 80-95 80 55 85 135 115 102 16 50 36 R 1/2" M8x6ad 55x65x10 55x65x5/7 73x4 55x60x9,5
18 ÇMS-CTP-100-50 100-115 100 50 106 160 137 113 16 60 37 R 3/4" M10x6ad 50x60x10 50x60x5/7 92x4 50x55x9,5
19 ÇMS-CTP-100-55 100-115 100 55 106 160 137 113 16 60 37 R 3/4" M10x6ad 55x65x10 55x65x5/7 92x4 55x60x9,5
20 ÇMS-CTP-100-56 100-115 100 56 106 160 137 113 16 60 37 R 3/4" M10x6ad 56x66x10 56x66x5/7 92x4 56x61x9,5
21 ÇMS-CTP-100-60 100-115 100 60 106 160 137 113 16 60 37 R 3/4" M10x6ad 60x70x10 60x70x5/7 92x4 60x65x9,5
22 ÇMS-CTP-100-70 100-115 100 70 106 160 137 113 16 60 37 R 3/4" M10x6ad 70x80x10 70x80x5/7 92x4 70x75x9,5
23 ÇMS-CTP-125-70 125-145 125 70 132 195 168 113 16 60 37 R 3/4" M12x6ad 70x80x10 70x80x5/7 117x4 70x75x9,5
24 ÇMS-CTP-125-80 125-145 125 80 132 195 168 113 16 60 37 R 3/4" M12x6ad 80x90x12 80x92x7/12 117x4 80x85x9,5
25 ÇMS-CTP-140-70 140-160 140 70 140 216 187 122 20 60 42 R 3/4" M14x6ad 70x80x10 70x80x5/7 130x5 70x75x9,5
26 ÇMS-CTP-140-80 140-160 140 80 140 216 187 122 20 60 42 R 3/4" M14x6ad 80x90x12 80x92x7/12 130x5 80x85x9,5
27 ÇMS-CTP-140-90 140-160 140 90 140 216 187 122 20 60 42 R 3/4" M14x6ad 90x100x12 90x102x7/12 130x5 90x95x9,5
28 ÇMS-CTP-160-80 160-180 160 80 160 246 215 122 20 60 42 R 3/4" M14x6ad 80x90x12 80x92x7/12 150x5 80x85x9,5
29 ÇMS-CTP-160-90 160-180 160 90 160 246 215 122 20 60 42 R 3/4" M14x6ad 90x100x12 90x102x7/12 150x5 90x95x9,5
30 ÇMS-CTP-160-100 160-180 160 100 160 246 215 122 20 60 42 R 3/4" M14x6ad 100x115x12 100x112x7/12 150x5 100x105x9,7
31 ÇMS-CTP-160-110 160-180 160 110 160 246 215 122 20 60 42 R 3/4" M14x6ad 110x125x12 110x122x7/12 150x5 110x115x9,5
32 ÇMS-CTP-180-100 180-200 180 100 180 256 225 122 20 60 42 R 1" M14x6ad 100x115x12 100x112x7/12 170x5 100x105x9,7
33 ÇMS-CTP-180-110 180-200 180 110 180 256 225 122 20 60 42 R 1" M14x6ad 110x125x12 110x122x7/12 170x5 110x115x9,5
34 ÇMS-CTP-180-120 180-200 180 120 180 256 225 122 20 60 42 R 1" M14x6ad 120x135x15 120x132x7/12 170x5 120x125x9,7
35 ÇMS-CTP-200-100 200-220 200 100 200 276 245 122 20 60 42 R 1" M14x8ad 100x115x12 100x112x7/12 189,3x5,7 100x105x9,7
36 ÇMS-CTP-200-110 200-220 200 110 200 276 245 122 20 60 42 R 1" M14x8ad 110x125x12 110x122x7/12 189,3x5,7 110x115x9,5
37 ÇMS-CTP-200-120 200-220 200 120 200 276 245 122 20 60 42 R 1" M14x8ad 120x140x12 120x132x7/12 189,3x5,7 120x125x9,7
38 ÇMS-CTP-200-140 200-220 200 140 200 276 245 122 20 60 42 R 1" M14x8ad 140x160x12 140x152x7/12 189,3x5,7 140x145x9,7
39 ÇMS-CTP-220-120 220-270 220 120 220 335 300 122 20 60 42 R 1" M14x8ad 120x140x12 120x132x7/12 209,2x5,7 120x125x9,7
40 ÇMS-CTP-220-140 220-270 220 140 220 335 300 122 20 60 42 R 1" M14x8ad 140x160x12 140x152x7/12 209,2x5,7 140x145x9,7
41 ÇMS-CTP-220-160 220-270 220 160 220 335 300 122 20 60 42 R 1" M14x8ad 160x180x12 160x175x10/16 209,2x5,7 160x166x18,9 (1)
42 ÇMS-CTP-250-140 250-300 250 140 250 356 325 130 20 60 50 R 1" M14x8ad 140x160x12 140x152x7/12 239,3x5,7 140x145x9,7
43 ÇMS-CTP-250-160 250-300 250 160 250 356 325 130 20 60 50 R 1" M14x8ad 160x180x12 160x175x10/16 239,3x5,7 160x166x18,9 (1)
44 ÇMS-CTP-250-180 250-300 250 180 250 356 325 130 20 60 50 R 1" M14x8ad 180x200x15 180x200x10/18 239,3x5,7 180x186x19 (1)
45 ÇMS-CTP-250-200 250-300 250 200 250 356 325 130 20 60 50 R 1" M14x8ad 200x220x15 200x220x10/18 239,3x5,7 200x206x19 (1)
