Hidrolik Silindir Kompakt Çelik Boğaz Kepleri, Hidrolik silindirlerde kullanılan, kompakt tasarımlı çelik keplerdir. Silindirin boru ve bağlantı noktalarını güvenli şekilde sabitleyerek dayanıklı ve sağlam bir montaj sağlar.

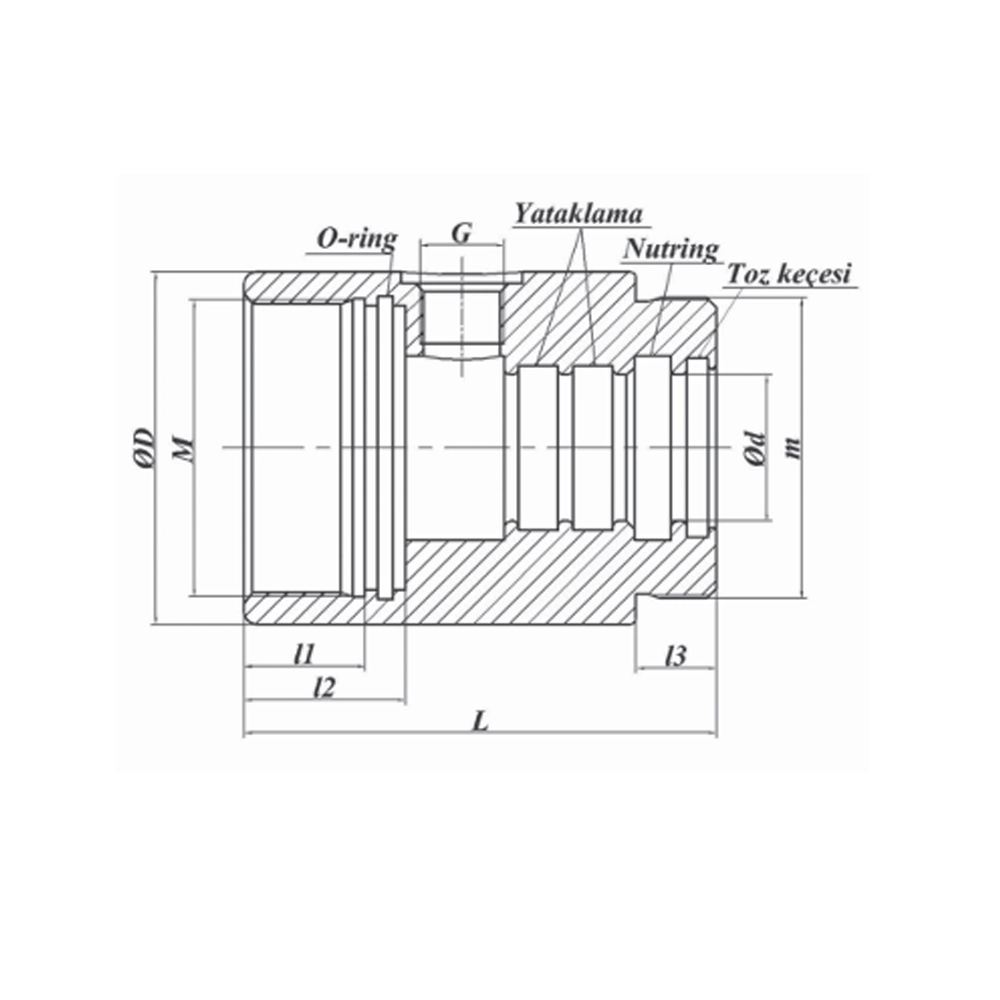

| NO | Ürün Kodu Product code |
D | d | M | m | L | l1 | l2 | l3 | G | Nutring (k33 PU) |
Toz Keçesi (K06 PU) Dust Seal |
O-ring (70shr) O-rings |
Yataklama (K68) Bearing (K68) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | ÇMS-KHSk-40-25 | 63 | 25 | M49x2 | M50x2 | 115 | 30 | 40 | 20 | R 3/8" | 25x35x6 | 25x33x5/7 | 46x3 | 25x29x9,4 |
| 2 | ÇMS-KHSk-40-28 | 63 | 28 | M49x2 | M50x2 | 115 | 30 | 40 | 20 | R 3/8" | 28x38x5,8 | 28x36x5/7 | 46x3 | 28x32x9,5 |
| 3 | ÇMS-KHSk-50-28 | 73 | 28 | M59x2 | M60x2 | 115 | 30 | 40 | 20 | R 3/8" | 28x38x5,8 | 28x36x5/7 | 56x3 | 28x32x9,5 |
| 4 | ÇMS-KHSk-50-30 | 73 | 30 | M59x2 | M60x2 | 115 | 30 | 40 | 20 | R 3/8" | 30x40x8 | 30x38x5/7 | 56x3 | 30x34x9,5 |
| 5 | ÇMS-KHSk-50-35 | 73 | 35 | M59x2 | M60x2 | 115 | 30 | 40 | 20 | R 3/8" | 35x45x8 | 35x43x5/7 | 56x3 | 35x40x9,5 |
| 6 | ÇMS-KHSk-50-36 | 73 | 36 | M59x2 | M60x2 | 115 | 30 | 40 | 20 | R 3/8" | 36x46x8 | 36x44x5/7 | 56x3 | 36x42x9,4 |
| 7 | ÇMS-KHSk-63-30 | 88 | 30 | M74x2 | M75x2 | 117 | 30 | 40 | 20 | R 1/2" | 30x40x8 | 30x38x5/7 | 72x3 | 30x34x9,5 |
| 8 | ÇMS-KHSk-63-35 | 88 | 35 | M74x2 | M75x2 | 117 | 30 | 40 | 20 | R 1/2" | 35x45x8 | 35x43x5/7 | 72x3 | 35x40x9,5 |
| 9 | ÇMS-KHSk-63-36 | 88 | 36 | M74x2 | M75x2 | 117 | 30 | 40 | 20 | R 1/2" | 36x46x8 | 36x44x5/7 | 72x3 | 36x42x9,4 |
| 10 | ÇMS-KHSk-63-40 | 88 | 40 | M74x2 | M75x2 | 117 | 30 | 40 | 20 | R 1/2" | 40x50x10 | 40x48x5/7 | 72x3 | 40x45x9,5 |
| 11 | ÇMS-KHSk-63-45 | 88 | 45 | M74x2 | M75x2 | 117 | 30 | 40 | 20 | R 1/2" | 45x55x10 | 45x55x5/7 | 72x3 | 45x50x9,5 |
| 12 | ÇMS-KHSk-70-35 | 98 | 35 | M84x2 | M85x2 | 117 | 30 | 40 | 20 | R 1/2" | 35x45x8 | 35x43x5/7 | 82x4 | 35x40x9,5 |
| 13 | ÇMS-KHSk-70-40 | 98 | 40 | M84x2 | M85x2 | 117 | 30 | 40 | 20 | R 1/2" | 40x50x10 | 40x48x5/7 | 82x4 | 40x45x9,5 |
| 14 | ÇMS-KHSk-70-45 | 98 | 45 | M84x2 | M85x2 | 117 | 30 | 40 | 20 | R 1/2" | 45x55x10 | 45x55x5/7 | 82x4 | 45x50x9,5 |
| 15 | ÇMS-KHSk-70-50 | 98 | 50 | M84x2 | M85x2 | 117 | 30 | 40 | 20 | R 1/2" | 50x60x10 | 50x60x5/7 | 82x4 | 50x55x9,5 |
| 16 | ÇMS-KHSk-80-40 | 108 | 40 | M94x2 | M95x2 | 126 | 35 | 45 | 25 | R 1/2" | 40x50x10 | 40x48x5/7 | 92x4 | 40x45x9,5 |
| 17 | ÇMS-KHSk-80-45 | 108 | 45 | M94x2 | M95x2 | 126 | 35 | 45 | 25 | R 1/2" | 45x55x10 | 45x55x5/7 | 92x4 | 45x50x9,5 |
| 18 | ÇMS-KHSk-80-50 | 108 | 50 | M94x2 | M95x2 | 126 | 35 | 45 | 25 | R 1/2" | 50x60x10 | 50x60x5/7 | 92x4 | 50x55x9,5 |
| 20 | ÇMS-KHSk-80-55 | 108 | 55 | M94x2 | M95x2 | 126 | 35 | 45 | 25 | R 1/2" | 55x65x10 | 55x65x5/7 | 92x4 | 55x60x9,5 |
| 21 | ÇMS-KHSk-80-56 | 108 | 56 | M94x2 | M95x2 | 126 | 35 | 45 | 25 | R 1/2" | 56x66x10 | 56x66x5/7 | 92x4 | 56x61x9,5 |
| 22 | ÇMS-KHSk-90-50 | 118 | 50 | M104x2 | M105x2 | 126 | 35 | 45 | 25 | R 1/2" | 50x60x10 | 50x60x5/7 | 102x4 | 50x55x9,5 |
| 23 | ÇMS-KHSk-90-55 | 118 | 55 | M104x2 | M105x2 | 126 | 35 | 45 | 25 | R 1/2" | 55x65x10 | 55x65x5/7 | 102x4 | 55x60x9,5 |
| 24 | ÇMS-KHSk-90-60 | 118 | 60 | M104x2 | M105x2 | 126 | 35 | 45 | 25 | R 1/2" | 60x70x10 | 60x70x5/7 | 102x4 | 60x65x9,5 |
| 25 | ÇMS-KHSk-100-50 | 127 | 50 | M114x2 | M115x2 | 140 | 35 | 45 | 25 | R 1/2" | 50x60x10 | 50x60x5/7 | 110x4 | 50x55x15 |
| 26 | ÇMS-KHSk-100-55 | 127 | 55 | M114x2 | M115x2 | 140 | 35 | 45 | 25 | R 1/2" | 55x65x10 | 55x65x5/7 | 110x4 | 55x60x15 |
| 27 | ÇMS-KHSk-100-56 | 127 | 56 | M114x2 | M115x2 | 140 | 35 | 45 | 25 | R 1/2" | 56x66x10 | 56x66x5/7 | 110x4 | 56x61x15 |
| 28 | ÇMS-KHSk-100-60 | 127 | 60 | M114x2 | M115x2 | 140 | 35 | 45 | 25 | R 1/2" | 60x70x10 | 60x70x5/7 | 110x4 | 60x65x15 |
| 29 | ÇMS-KHSk-100-70 | 127 | 70 | M114x2 | M115x2 | 140 | 35 | 45 | 25 | R 1/2" | 70x80x10 | 70x80x5/7 | 110x4 | 70x75x15 |
| 30 | ÇMS-KHSk-110-60 | 150 | 60 | M129x2 | M130x2 | 140 | 35 | 45 | 25 | R 1/2" | 60x70x10 | 60x70x5/7 | 120x4 | 60x65x15 |
| 31 | ÇMS-KHSk-110-70 | 150 | 70 | M129x2 | M130x2 | 140 | 35 | 45 | 25 | R 1/2" | 70x80x10 | 70x80x5/7 | 120x4 | 70x75x15 |
| 32 | ÇMS-KHSk-110-80 | 150 | 80 | M129x2 | M130x2 | 140 | 35 | 45 | 25 | R 1/2" | 80x90x10 | 80x88x5/7 | 120x4 | 80x85x15 |
| 33 | ÇMS-KHSk-120-60 | 160 | 60 | M139x2 | M140x2 | 165 | 45 | 60 | 30 | R 3/4" | 60x70x10 | 60x70x5/7 | 130x4 | 60x65x15 |
| 34 | ÇMS-KHSk-120-70 | 160 | 70 | M139x2 | M140x2 | 165 | 45 | 60 | 30 | R 3/4" | 70x80x10 | 70x80x5/7 | 130x4 | 70x75x15 |
| 35 | ÇMS-KHSk-120-80 | 160 | 80 | M139x2 | M140x2 | 165 | 45 | 60 | 30 | R 3/4" | 80x90x10 | 80x88x5/7 | 130x4 | 80x85x15 |
| 36 | ÇMS-KHSk-125-60 | 165 | 60 | M144x2 | M145x2 | 165 | 45 | 60 | 30 | R 3/4" | 60x70x10 | 60x70x5/7 | 135x5 | 60x65x15 |
| 37 | ÇMS-KHSk-125-70 | 165 | 70 | M144x2 | M145x2 | 165 | 45 | 60 | 30 | R 3/4" | 70x80x10 | 70x80x5/7 | 135x5 | 70x75x15 |
| 38 | ÇMS-KHSk-125-80 | 165 | 80 | M144x2 | M145x2 | 165 | 45 | 60 | 30 | R 3/4" | 80x90x10 | 80x88x5/7 | 135x5 | 80x85x15 |
| 39 | ÇMS-KHSk-125-90 | 165 | 90 | M144x2 | M145x2 | 165 | 45 | 60 | 30 | R 3/4" | 90x100x10 | 90x98x5/7 | 135x5 | 90x95x15 |
| 40 | ÇMS-KHSk-140-80 | 185 | 80 | M159x2 | M160x2 | 165 | 45 | 60 | 30 | R 3/4" | 80x90x10 | 80x88x5/7 | 155x5 | 80x85x15 |
| 41 | ÇMS-KHSk-140-90 | 185 | 90 | M159x2 | M160x2 | 165 | 45 | 60 | 30 | R 3/4" | 90x100x10 | 90x98x5/7 | 155x5 | 90x95x15 |
| 42 | ÇMS-KHSk-140-100 | 185 | 100 | M159x2 | M160x2 | 165 | 45 | 60 | 30 | R 3/4" | 100x120x12 | 100x112x7/12 | 155x5 | 100x105x15 |
| 43 | ÇMS-KHSk-160-80 | 205 | 80 | M178x2 | M180x2 | 180 | 55 | 70 | 35 | R 3/4" | 80x90x10 | 80x88x5/7 | 170x5 | 80x85x15 |
| 44 | ÇMS-KHSk-160-90 | 205 | 90 | M178x2 | M180x2 | 180 | 55 | 70 | 35 | R 3/4" | 90x100x10 | 90x107x7/12 | 170x5 | 90x95x15 |
| 45 | ÇMS-KHSk-160-100 | 205 | 100 | M178x2 | M180x2 | 180 | 55 | 70 | 35 | R 3/4" | 100x120x12 | 100x112x7/12 | 170x5 | 100x105x15 |
| 46 | ÇMS-KHSk-160-110 | 205 | 110 | M178x2 | M180x2 | 180 | 55 | 70 | 35 | R 3/4" | 110x125x12 | 110x122x7/12 | 170x5 | 110x115x15 |
| 47 | ÇMS-KHSk-180-100 | 235 | 100 | M208x3 | M210x3 | 190 | 60 | 75 | 40 | R 1" | 90x100x10 | 90x107x7/12 | 200x5 | 100x105x15 |
| 48 | ÇMS-KHSk-180-110 | 235 | 110 | M208x3 | M210x3 | 190 | 60 | 75 | 40 | R 1" | 110x125x12 | 110x122x7/12 | 200x5 | 110x115x15 |
| 49 | ÇMS-KHSk-180-120 | 235 | 120 | M208x3 | M210x3 | 190 | 60 | 75 | 40 | R 1" | 120x140x12 | 120x132x7/12 | 200x5 | 120x125x15 |
| 50 | ÇMS-KHSk-200-100 | 255 | 100 | M228x3 | M230x3 | 190 | 60 | 75 | 40 | R 1" | 100x120x12 | 100x112x7/12 | 220x5 | 100x105x15 |
| 51 | ÇMS-KHSk-200-110 | 255 | 110 | M228x3 | M230x3 | 190 | 60 | 75 | 40 | R 1" | 110x125x12 | 110x122x7/12 | 220x5 | 110x115x15 |
| 52 | ÇMS-KHSk-200-120 | 255 | 120 | M228x3 | M230x3 | 190 | 60 | 75 | 40 | R 1" | 120x140x12 | 120x132x7/12 | 220x5 | 120x125x15 |
| 53 | ÇMS-KHSk-200-140 | 255 | 140 | M228x3 | M230x3 | 190 | 60 | 75 | 40 | R 1" | 140x160x12 | 140x155x9/12 | 220x5 | 140x145x15 |
