Hidrolik Silindir Uzatma Kepleri

Hidrolik Silindir Uzatma Kepleri; silindir milinin standart uzunluğunu ihtiyaca göre uzatarak montaj esnekliği sağlar. Dayanıklı yapısı sayesinde basınç ve titreşimlere karşı direnç gösterir, sızdırmazlık elemanlarıyla birlikte güvenli ve stabil bir çalışma sunar. Sistem performansını koruyarak uzun ömürlü ve verimli kullanım imkânı sağlar.



SKU: ÇMS-U-50-30, ÇMS-U-50-35, ÇMS-U-63-35, ÇMS-U-80-40

Kategori: Hidrolik Silindir Uzatma Kepleri

Whatsapp Sipariş

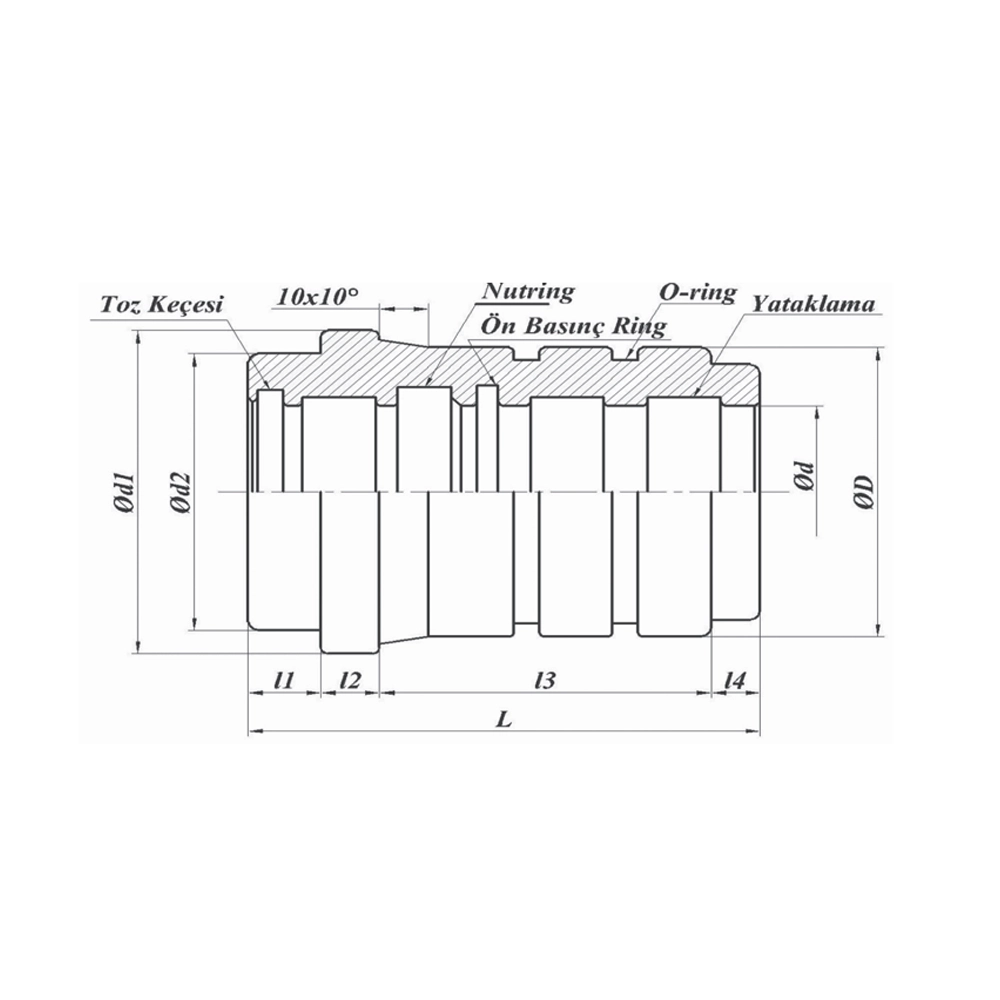

NO Ürün Kodu
Product code
Код продукта		 ØD Ød Ød1 Ød2 I1 I2 I3 I4 L Nutring
(k33 PU)		 Toz Keçesi (K06 PU)
Dust Seal / Пылезащита		 O-ring (70shr)
O-rings		 Ön Basınç Ringi
Pre-Pressure Ring		 Yataklama (K68)
Bearing (K68)
1 ÇMS-U-50-30 50 30 56 45 12 8 52 8 80 30x40x8 30x38x5/7 41x4 - 30x34x9,5 (3 adet)
2 ÇMS-U-50-35 50 35 56 45 12 8 52 8 80 35x43x7 35x43x5/7 41x4 - 35x40x15 (2 adet)
3 ÇMS-U-63-35 63 35 71 60 15 12 68 10 105 35x45x8 35x43x5/7 56x4 35x45,7x4,2 35x40x15 (3 adet)
4 ÇMS-U-63-40 63 40 71 60 15 12 68 10 105 40x50x10 40x48x5/7 56x4 40x50,7x4,2 40x45x15 (3 adet)
5 ÇMS-U-63-45 63 45 71 60 15 12 68 10 105 45x55x10 45x55x5/7 56x4 45x55,7x4,2 45x50x15 (3 adet)
6 ÇMS-U-70-40 70 40 81 70 15 12 68 10 105 40x50x10 40x48x5/7 62x4 40x50,7x4,2 40x45x15 (3 adet)
7 ÇMS-U-70-45 70 45 81 70 15 12 68 10 105 45x55x10 45x55x5/7 62x4 45x55,7x4,2 45x50x15 (3 adet)
8 ÇMS-U-70-50 70 50 81 70 15 12 68 10 105 50x60x10 50x60x5/7 62x4 50x60,7x4,2 50x55x15 (3 adet)
9 ÇMS-U-70-55 70 55 81 70 15 12 68 10 105 55x65x10 55x65x5/7 62x4 55x70,5x6,3 55x60x15 (3 adet)
10 ÇMS-U-80-40 80 40 91 75 15 12 68 10 105 40x50x10 40x48x5/7 73x4 40x50,7x4,2 40x45x15 (3 adet)
11 ÇMS-U-80-45 80 45 91 75 15 12 68 10 105 45x55x10 45x55x5/7 73x4 45x55,7x4,2 45x50x15 (3 adet)
12 ÇMS-U-80-50 80 50 91 75 15 12 68 10 105 50x60x10 50x60x5/7 73x4 50x60,7x4,2 50x55x15 (3 adet)
13 ÇMS-U-80-55 80 55 91 75 15 12 68 10 105 55x65x10 55x65x5/7 73x4 55x70,5x6,3 55x60x15 (3 adet)
14 ÇMS-U-80-60 80 60 91 75 15 12 68 10 105 60x70x10 60x70x5/7 73x4 60x75,5x6,3 60x65x15 (3 adet)
15 ÇMS-U-90-40 90 40 100 85 15 12 68 10 105 40x50x10 40x48x5/7 82x4 40x50,7x4,2 40x45x15 (3 adet)
16 ÇMS-U-90-45 90 45 100 85 15 12 68 10 105 45x55x10 45x55x5/7 82x4 45x55,7x4,2 45x50x15 (3 adet)
17 ÇMS-U-90-50 90 50 100 85 15 12 68 10 105 50x60x10 50x60x5/7 82x4 50x60,7x4,2 50x55x15 (3 adet)
18 ÇMS-U-90-55 90 56 100 85 15 12 68 10 105 55x65x10 55x65x5/7 82x4 55x70,5x6,3 55x60x15 (3 adet)
19 ÇMS-U-90-60 90 60 100 85 15 12 68 10 105 60x70x10 60x70x5/7 82x4 60x75,5x6,3 60x65x15 (3 adet)
20 ÇMS-U-90-65 90 65 100 85 15 12 68 10 105 65x75x10 65x75x5/7 82x4 65x80,5x6,3 65x70x15 (3 adet)
21 ÇMS-U-90-70 90 70 100 85 15 12 68 10 105 70x80x10 70x80x5/7 82x4 - 70x75x15 (3 adet)
22 ÇMS-U-100-50 100 50 110 95 15 12 68 10 105 50x60x10 50x60x5/7 90x5 50x60,7x4,2 50x55x15 (3 adet)
23 ÇMS-U-100-55 100 55 110 95 15 12 68 10 105 55x65x10 55x65x5/7 90x5 55x70,5x6,3 55x60x15 (3 adet)
24 ÇMS-U-100-60 100 60 110 95 15 12 68 10 105 60x70x10 60x70x5/7 90x5 60x75,5x6,3 60x65x15 (3 adet)
25 ÇMS-U-100-65 100 65 110 95 15 12 68 10 105 65x75x10 65x75x5/7 90x5 65x80,5x6,3 65x70x15 (3 adet)
26 ÇMS-U-100-70 100 70 110 95 15 12 68 10 105 70x80x12 70x80x5/7 90x5 70x85,5x6,3 70x75x15 (3 adet)
27 ÇMS-U-110-50 110 50 125 105 15 12 68 10 105 50x60x10 50x60x5/7 100x5 50x60,7x4,2 50x55x15 (3 adet)
28 ÇMS-U-110-55 110 55 125 105 15 12 68 10 105 55x65x10 55x65x5/7 100x5 55x70,5x6,3 55x60x15 (3 adet)
29 ÇMS-U-110-60 110 60 125 105 15 12 68 10 105 60x70x10 60x70x5/7 100x5 60x75,5x6,3 60x65x15 (3 adet)
30 ÇMS-U-110-65 110 65 125 105 15 12 68 10 105 65x75x10 65x75x5/7 100x5 65x80,5x6,3 65x70x15 (3 adet)
31 ÇMS-U-110-70 110 70 125 105 15 12 68 10 105 70x80x12 70x80x5/7 100x5 70x85,5x6,3 70x75x15 (3 adet)
32 ÇMS-U-110-80 110 80 125 105 15 12 68 10 105 80x90x12 80x92x7/12 100x5 80x95,5x6,3 80x85x15 (3 adet)
33 ÇMS-U-115-60 115 60 125 105 15 12 68 10 105 60x70x10 60x70x5/7 105x5 60x75,5x6,3 60x65x15 (3 adet)
34 ÇMS-U-115-65 115 65 125 105 15 12 68 10 105 65x75x10 65x75x5/7 105x5 65x80,5x6,3 65x70x15 (3 adet)
35 ÇMS-U-115-70 115 70 125 105 15 12 68 10 105 70x80x12 70x80x5/7 105x5 70x85,5x6,3 70x75x15 (3 adet)
36 ÇMS-U-115-80 115 80 125 105 15 12 68 10 105 80x90x12 80x92x7/12 105x5 80x95,5x6,3 80x85x15 (3 adet)
37 ÇMS-U-120-60 120 60 135 110 15 12 68 10 105 60x70x10 60x70x5/7 110x5 60x75,5x6,3 60x65x15 (3 adet)
38 ÇMS-U-120-65 120 65 135 110 15 12 68 10 105 65x75x10 65x75x5/7 110x5 65x80,5x6,3 65x70x15 (3 adet)
39 ÇMS-U-120-70 120 70 135 110 15 12 68 10 105 70x80x12 70x80x5/7 110x5 70x85,5x6,3 70x75x15 (3 adet)
40 ÇMS-U-120-80 120 80 135 110 15 12 68 10 105 80x90x12 80x92x7/12 110x5 80x95,5x6,3 80x85x15 (3 adet)
41 ÇMS-U-120-90 120 90 135 110 15 12 68 10 105 90x100x12 90x102x7/12 110x5 90x105,5x6,3 90x100x15 (3 adet)
42 ÇMS-U-125-70 125 70 138 115 15 12 68 10 105 70x80x12 70x80x5/7 115x5 70x85,5x6,3 70x75x15 (3 adet)
43 ÇMS-U-125-80 125 80 138 115 15 12 68 10 105 80x90x12 80x92x7/12 115x5 80x95,5x6,3 80x85x15 (3 adet)
44 ÇMS-U-125-90 125 90 138 115 15 12 68 10 105 90x100x12 90x102x7/12 115x5 90x105,5x6,3 90x100x15 (3 adet)
45 ÇMS-U-125-100 125 100 138 115 15 12 68 10 105 100x115x12 100x112x7/12 115x5 100x115,5x6,3 100x115x15 (3 adet)
46 ÇMS-U-130-70 130 70 145 125 15 12 68 10 105 70x80x12 70x80x5/7 120x5 70x85,5x6,3 70x75x15 (3 adet)
47 ÇMS-U-130-80 130 80 145 125 15 12 68 10 105 80x90x12 80x92x7/12 120x5 80x95,5x6,3 80x85x15 (3 adet)
48 ÇMS-U-130-90 130 90 145 125 15 12 68 10 105 90x100x12 90x102x7/12 120x5 90x105,5x6,3 90x100x15 (3 adet)
49 ÇMS-U-130-100 130 100 145 125 15 12 68 10 105 100x115x12 100x112x7/12 120x5 100x115,5x6,3 100x115x15 (3 adet)
50 ÇMS-U-140-60 140 60 155 130 15 12 68 10 105 60x70x10 60x70x5/7 130x5 60x75,5x6,3 60x65x15 (3 adet)
51 ÇMS-U-140-70 140 70 155 130 15 12 68 10 105 70x80x12 70x80x5/7 130x5 70x85,5x6,3 70x75x15 (3 adet)
52 ÇMS-U-140-80 140 80 155 130 15 12 68 10 105 80x90x12 80x92x7/12 130x5 80x95,5x6,3 80x85x15 (3 adet)
53 ÇMS-U-140-90 140 90 155 130 15 12 68 10 105 90x100x12 90x102x7/12 130x5 90x105,5x6,3 90x100x15 (3 adet)
54 ÇMS-U-140-100 140 100 155 130 15 12 68 10 105 100x115x12 100x112x7/12 130x5 100x115,5x6,3 100x115x15 (3 adet)
55 ÇMS-U-140-110 140 110 155 130 15 12 68 10 105 110x125x12 110x122x7/12 130x5 110x125,5x6,3 110x115x15 (3 adet)
56 ÇMS-U-150-100 140 100 165 140 15 12 68 10 105 100x115x12 100x112x7/12 140x5 100x115,5x6,3 100x115x15 (3 adet)
57 ÇMS-U-150-110 140 110 165 140 15 12 68 10 105 110x125x12 110x122x7/12 140x5 110x125,5x6,3 110x115x15 (3 adet)
