Hidrolik Silindir Çelik Boğaz Kepi

Hidrolik Silindir Döküm Boğaz Kepi; piston milini merkezde tutarak düzgün ve dengeli hareket sağlar, aynı zamanda sızdırmazlık elemanlarını koruyarak kaçak riskini minimize eder. Sağlam döküm gövdesi yüksek basınç ve darbe yüklerine karşı dayanıklılık sunar. Uzun ömürlü yapısı sayesinde bakım ihtiyacını azaltır ve sistem güvenilirliğini artırır.



SKU: ÇMS-KÇ-40-25, ÇMS-KÇ-45-25, ÇMS-KÇ-45-30, ÇMS-KÇ-50-25

Kategori: Hidrolik Silindir Döküm Boğaz Kepleri

Whatsapp Sipariş

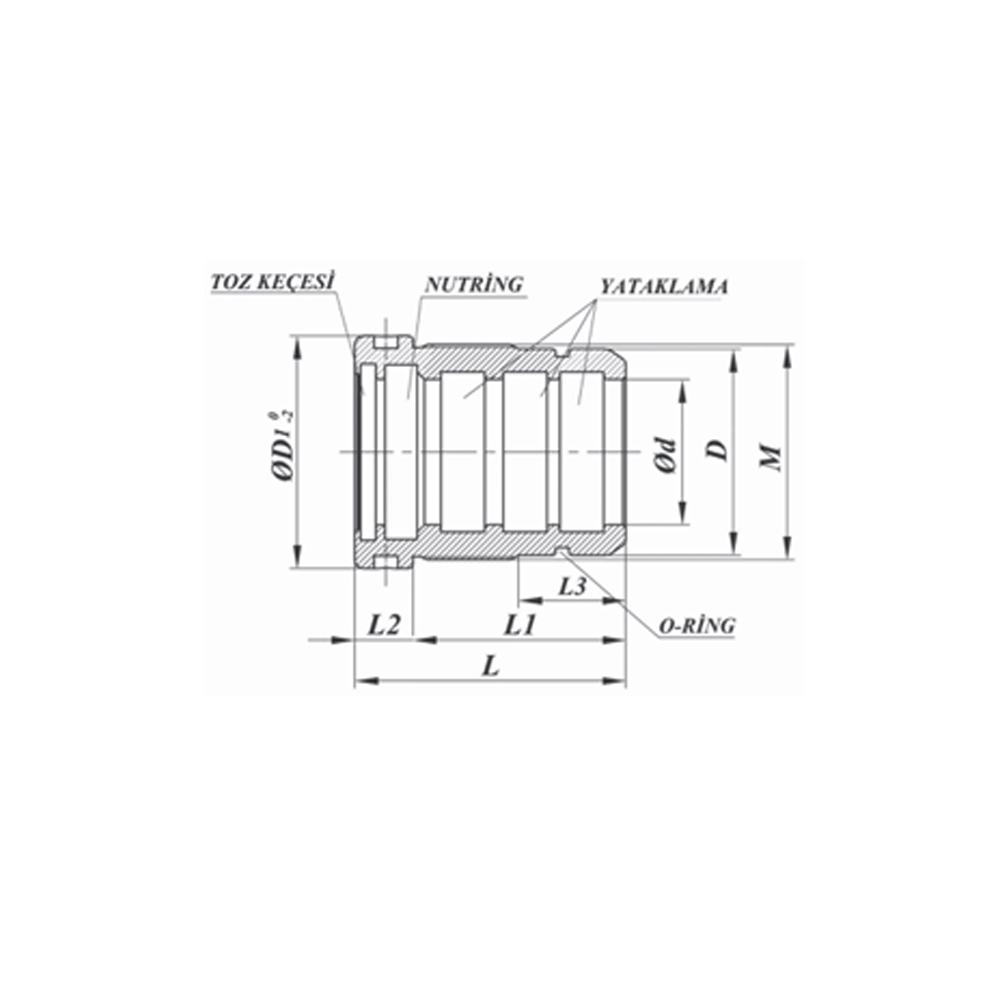

NO Ürün Kodu
Product code
Код продукта		 ØD Ød M L2 L1 L3 L ØD1 Nutring
(k33 PU)		 Toz Keçesi (K06 PU)
Dust Seal
Пылезащита		 O-ring (70shr)
O-rings
O-образные кольца		 Yataklama (K68)
Bearing (K68)
Подшипник (K68)
1 ÇMS-KÇ-40-25 41 25 M44x1,5 12 45 22 57 50 25x35x6 25x33x5/7 3x36 25x29x9,4 (2 adet)
2 ÇMS-KÇ-45-25 46 25 M49x1,5 12 45 22 57 55 25x35x6 25x33x5/7 3x41 25x29x9,4 (2 adet)
3 ÇMS-KÇ-45-30 46 30 M49x1,5 12 45 22 57 55 30x40x8 30x38x5/7 3x41 30x35x9,5 (2 adet)
5 ÇMS-KÇ-50-25 51 25 M54x1,5 12 45 22 57 60 25x35x6 25x33x5/7 3,53x44,45 25x29x9,4 (2 adet)
6 ÇMS-KÇ-50-30 51 30 M54x1,5 12 45 22 57 60 30x40x8 30x38x5/7 3,53x44,45 30x35x9,5 (2 adet)
7 ÇMS-KÇ-50-35 51 35 M54x1,5 12 45 22 57 60 35x45x8 35x43x5/7 3,53x44,45 35x40x15 (1 adet)
8 ÇMS-KÇ-55-25 56 25 M59x1,5 16 60 22 76 65 25x35x6 25x33x5/7 3,53x50,40 25x29x9,4 (2 adet)
9 ÇMS-KÇ-55-30 56 30 M59x1,5 16 60 22 76 65 30x40x8 30x38x5/7 3,53x50,40 30x35x9,5 (2 adet)
10 ÇMS-KÇ-55-35 56 35 M59x1,5 16 60 22 76 65 35x45x8 35x43x5/7 3,53x50,40 35x40x15 (2 adet)
11 ÇMS-KÇ-60-30 61 30 M64x1,5 16 60 30 76 70 30x40x8 30x38x5/7 3,53x53,57 30x35x15 (2 adet)
12 ÇMS-KÇ-60-35 61 35 M64x1,5 16 60 30 76 70 35x45x8 35x43x5/7 3,53x53,57 35x40x15 (2 adet)
13 ÇMS-KÇ-60-40 61 40 M64x1,5 16 60 30 76 70 40x50x10 40x48x5/7 3,53x53,57 40x45x15 (2 adet)
14 ÇMS-KÇ-60-45 61 45 M64x1,5 16 60 30 76 70 45x55x10 45x55x5/7 3,53x53,57 45x50x15 (2 adet)
15 ÇMS-KÇ-63-30 64 30 M69x1,5 16 60 30 76 75 30x40x8 30x38x5/7 3,53x57,15 30x35x9,5 (3 adet)
16 ÇMS-KÇ-63-35 64 35 M69x1,5 16 60 30 76 75 35x45x8 35x43x5/7 3,53x57,15 35x40x15 (2 adet)
17 ÇMS-KÇ-63-40 64 40 M69x1,5 16 60 30 76 75 40x50x10 40x48x5/7 3,53x57,15 40x45x15 (2 adet)
18 ÇMS-KÇ-63-45 64 45 M69x1,5 16 60 30 76 75 45x55x10 45x55x5/7 3,53x57,15 45x50x15 (2 adet)
19 ÇMS-KÇ-65-30 66 30 M69x1,5 16 60 30 76 75 30x40x8 30x38x5/7 3,53x60,33 30x35x9,5 (3 adet)
20 ÇMS-KÇ-65-35 66 35 M69x1,5 16 60 30 76 75 35x45x8 35x43x5/7 3,53x60,33 35x40x15 (2 adet)
21 ÇMS-KÇ-65-40 66 40 M69x1,5 16 60 30 76 75 40x50x10 40x48x5/7 3,53x60,33 40x45x15 (2 adet)
22 ÇMS-KÇ-65-45 66 45 M69x1,5 16 60 30 76 75 45x55x10 45x55x5/7 3,53x60,33 45x50x15 (2 adet)
29 ÇMS-KÇ-70-30 71 30 M74x1,5 16 60 30 76 85 30x40x8 30x38x5/7 3,53x65,10 30x35x9,5 (3 adet)
30 ÇMS-KÇ-70-35 71 35 M74x1,5 16 60 30 76 85 35x45x8 35x43x5/7 3,53x65,10 35x40x15 (2 adet)
31 ÇMS-KÇ-70-40 71 40 M74x1,5 16 60 30 76 85 40x50x10 40x48x5/7 3,53x65,10 40x45x15 (2 adet)
32 ÇMS-KÇ-70-45 71 45 M74x1,5 16 60 30 76 85 45x55x10 45x55x5/7 3,53x65,10 45x50x15 (2 adet)
33 ÇMS-KÇ-70-50 71 50 M74x1,5 16 60 30 76 85 50x60x10 50x60x5/7 3,53x65,10 50x55x15 (2 adet)
34 ÇMS-KÇ-70-55 71 55 M74x1,5 16 60 30 76 85 55x65x10 55x65x5/7 3,53x65,10 55x60x15 (2 adet)
35 ÇMS-KÇ-75-30 76 30 M80x1,5 16 60 30 76 85 30x40x8 30x38x5/7 3,53x69,85 30x35x15 (2 adet)
36 ÇMS-KÇ-75-35 76 35 M80x1,5 16 60 30 76 85 35x45x8 35x43x5/7 3,53x69,85 35x40x15 (2 adet)
37 ÇMS-KÇ-75-40 76 40 M80x1,5 16 60 30 76 85 40x50x10 40x48x5/7 3,53x69,85 40x45x15 (2 adet)
38 ÇMS-KÇ-75-45 76 45 M80x1,5 16 60 30 76 85 45x55x10 45x55x5/7 3,53x69,85 45x50x15 (2 adet)
39 ÇMS-KÇ-75-50 76 50 M80x1,5 16 60 30 76 85 50x60x10 50x60x5/7 3,53x69,85 50x55x15 (2 adet)
40 ÇMS-KÇ-80-35 81 35 M85x2 16 60 30 76 95 35x45x8 35x43x5/7 3,53x74,61 35x40x15 (2 adet)
41 ÇMS-KÇ-80-40 81 40 M85x2 16 60 30 76 95 40x50x10 40x48x5/7 3,53x74,61 40x45x15 (2 adet)
42 ÇMS-KÇ-80-45 81 45 M85x2 16 60 30 76 95 45x55x10 45x55x5/7 3,53x74,61 45x50x15 (2 adet)
43 ÇMS-KÇ-80-50 81 50 M85x2 16 60 30 76 95 50x60x10 50x60x5/7 3,53x74,61 50x55x15 (2 adet)
44 ÇMS-KÇ-80-55 81 55 M85x2 16 60 30 76 95 55x65x10 55x65x5/7 3,53x74,61 55x60x15 (2 adet)
45 ÇMS-KÇ-80-60 81 60 M85x2 16 60 30 76 95 60x70x10 60x70x5/7 3,53x74,61 60x65x15 (2 adet)
46 ÇMS-KÇ-85-35 86 35 M90x2 16 60 30 76 100 35x45x8 35x43x5/7 4x78 35x40x15 (2 adet)
47 ÇMS-KÇ-85-40 86 40 M90x2 16 60 30 76 100 40x50x10 40x48x5/7 4x78 40x45x15 (2 adet)
48 ÇMS-KÇ-85-45 86 45 M90x2 16 60 30 76 100 45x55x10 45x55x5/7 4x78 45x50x15 (2 adet)
49 ÇMS-KÇ-85-50 86 50 M90x2 16 60 30 76 100 50x60x10 50x60x5/7 4x78 50x55x15 (2 adet)
50 ÇMS-KÇ-85-55 86 55 M90x2 16 60 30 76 100 55x65x10 55x65x5/7 4x78 55x60x15 (2 adet)
51 ÇMS-KÇ-90-40 91 40 M95x2 16 60 30 76 105 40x50x10 40x48x5/7 4x84 40x45x15 (2 adet)
52 ÇMS-KÇ-90-45 91 45 M95x2 16 60 30 76 105 45x55x10 45x55x5/7 4x84 45x50x15 (2 adet)
53 ÇMS-KÇ-90-50 91 50 M95x2 16 60 30 76 105 50x60x10 50x60x5/7 4x84 50x55x15 (2 adet)
54 ÇMS-KÇ-90-55 91 55 M95x2 16 60 30 76 105 55x65x10 55x65x5/7 4x84 55x60x15 (2 adet)
55 ÇMS-KÇ-90-60 91 60 M95x2 16 60 30 76 105 60x70x10 60x70x5/7 4x84 60x65x15 (2 adet)
56 ÇMS-KÇ-90-65 91 65 M95x2 16 60 30 76 105 65x75x10 65x75x5/7 4x84 65x70x15 (3 adet)
57 ÇMS-KÇ-90-70 91 70 M95x2 16 60 30 76 105 70x80x12 70x80x5/7 4x84 70x75x15 (3 adet)
58 ÇMS-KÇ-100-40 101 40 M105x2 20 85 40 105 115 40x50x10 40x48x5/7 5x90 40x45x15 (3 adet)
59 ÇMS-KÇ-100-45 101 45 M105x2 20 85 40 105 115 45x55x10 45x55x5/7 5x90 45x50x15 (3 adet)
60 ÇMS-KÇ-100-50 101 50 M105x2 20 85 40 105 115 50x60x10 50x60x5/7 5x90 50x55x15 (3 adet)
61 ÇMS-KÇ-100-55 101 55 M105x2 20 85 40 105 115 55x65x10 55x65x5/7 5x90 55x60x15 (3 adet)
62 ÇMS-KÇ-100-60 101 60 M105x2 20 85 40 105 115 60x70x10 60x70x5/7 5x90 60x65x15 (3 adet)
63 ÇMS-KÇ-100-65 101 65 M105x2 20 85 40 105 115 65x75x10 65x75x5/7 5x90 65x70x15 (3 adet)
64 ÇMS-KÇ-100-70 101 70 M105x2 20 85 40 105 115 70x80x12 70x80x5/7 5x90 70x75x15 (3 adet)
65 ÇMS-KÇ-100-75 101 75 M105x2 20 85 40 105 115 75x85x12 75x87x7/12 5x90 75x80x15 (3 adet)
66 ÇMS-KÇ-110-50 111 50 M115x2 20 85 40 105 130 50x60x10 50x60x5/7 5x100 50x55x15 (3 adet)
67 ÇMS-KÇ-110-55 111 55 M115x2 20 85 40 105 130 55x65x10 55x65x5/7 5x100 55x60x15 (3 adet)
68 ÇMS-KÇ-110-60 111 60 M115x2 20 85 40 105 130 60x70x10 60x70x5/7 5x100 60x65x15 (3 adet)
69 ÇMS-KÇ-110-70 111 70 M115x2 20 85 40 105 130 70x80x12 70x80x5/7 5x100 70x75x15 (3 adet)
70 ÇMS-KÇ-110-80 111 80 M115x2 20 85 40 105 130 80x90x12 80x92x7/12 5x100 80x85x15 (3 adet)
71 ÇMS-KÇ-115-60 116 60 M120x2 20 85 40 105 135 60x70x10 60x70x5/7 5x105 60x65x15 (3 adet)
72 ÇMS-KÇ-115-70 116 70 M120x2 20 85 40 105 135 70x80x12 70x80x5/7 5x105 70x75x15 (3 adet)
73 ÇMS-KÇ-115-80 116 80 M120x2 20 85 40 105 135 80x90x12 80x92x7/12 5x105 80x85x15 (3 adet)
74 ÇMS-KÇ-120-50 121 50 M125x2 20 85 40 105 140 50x60x10 50x60x5/7 5x110 50x55x15 (3 adet)
75 ÇMS-KÇ-120-55 121 55 M125x2 20 85 40 105 140 55x65x10 55x65x5/7 5x110 55x60x15 (3 adet)
76 ÇMS-KÇ-120-60 121 60 M125x2 20 85 40 105 140 60x70x10 60x70x5/7 5x110 60x65x15 (3 adet)
77 ÇMS-KÇ-120-65 121 65 M125x2 20 85 40 105 140 65x75x10 65x75x5/7 5x110 65x70x15 (3 adet)
78 ÇMS-KÇ-120-70 121 70 M125x2 20 85 40 105 140 70x80x12 70x80x5/7 5x110 70x75x15 (3 adet)
79 ÇMS-KÇ-120-75 121 75 M125x2 20 85 40 105 140 75x85x12 75x87x7/12 5x110 75x80x15 (3 adet)
80 ÇMS-KÇ-120-80 121 80 M125x2 20 85 40 105 140 80x90x12 80x92x7/12 5x110 80x85x15 (3 adet)
81 ÇMS-KÇ-120-90 121 90 M125x2 20 85 40 105 140 90x100x12 90x102x7/12 5x110 90x95x15 (3 adet)
82 ÇMS-KÇ-125-50 126 50 M130x2 20 85 40 105 145 50x60x10 50x60x5/7 5x115 50x55x15 (3 adet)
83 ÇMS-KÇ-125-60 126 60 M130x2 20 85 40 105 145 60x70x10 60x70x5/7 5x115 60x65x15 (3 adet)
84 ÇMS-KÇ-125-65 126 65 M130x2 20 85 40 105 145 65x75x10 65x75x5/7 5x115 65x70x15 (3 adet)
85 ÇMS-KÇ-125-70 126 70 M130x2 20 85 40 105 145 70x80x12 70x80x5/7 5x115 70x75x15 (3 adet)
86 ÇMS-KÇ-125-75 126 75 M130x2 20 85 40 105 145 75x85x12 75x87x7/12 5x115 75x80x15 (3 adet)
87 ÇMS-KÇ-125-80 126 80 M130x2 20 85 40 105 145 80x90x12 80x92x7/12 5x115 80x85x15 (3 adet)
88 ÇMS-KÇ-125-85 126 85 M130x2 20 85 40 105 145 85x95x12 85x97x7/12 5x115 85x90x15 (3 adet)
89 ÇMS-KÇ-125-90 126 90 M130x2 20 85 40 105 145 90x100x12 90x102x7/12 5x115 90x95x15 (3 adet)
90 ÇMS-KÇ-130-70 131 70 M135x2 20 85 40 105 150 70x80x12 70x80x5/7 5x120 70x75x15 (3 adet)
91 ÇMS-KÇ-130-80 131 80 M135x2 20 85 40 105 150 80x90x12 80x92x7/12 5x120 80x85x15 (3 adet)
92 ÇMS-KÇ-130-90 131 90 M135x2 20 85 40 105 150 90x100x12 90x102x7/12 5x120 90x95x15 (3 adet)
93 ÇMS-KÇ-130-100 131 100 M135x2 20 85 40 105 150 100x115x12 100x112x7/12 5x120 100x105x15 (3 adet)
94 ÇMS-KÇ-140-70 141 70 M145x2 20 85 40 105 160 70x80x12 70x80x5/7 5x130 70x75x15 (3 adet)
95 ÇMS-KÇ-140-80 141 80 M145x2 20 85 40 105 160 80x90x12 80x92x7/12 5x130 80x85x15 (3 adet)
96 ÇMS-KÇ-140-85 141 85 M145x2 20 85 40 105 160 85x95x12 85x97x7/12 5x130 85x90x15 (3 adet)
97 ÇMS-KÇ-140-90 141 90 M145x2 20 85 40 105 160 90x100x12 90x102x7/12 5x130 90x95x15 (3 adet)
98 ÇMS-KÇ-140-100 141 100 M145x2 20 85 40 105 160 100x120x12 100x112x7/12 5x130 100x105x15 (3 adet)
99 ÇMS-KÇ-140-110 141 110 M145x2 20 85 40 105 160 110x125x12 110x122x7/12 5x130 110x115x15 (3 adet)
100 ÇMS-KÇ-150-70 151 70 M155x2 20 85 40 105 170 70x80x12 70x80x5/7 5x140 70x75x15 (3 adet)
101 ÇMS-KÇ-150-80 151 80 M155x2 20 85 40 105 170 80x90x12 80x92x7/12 5x140 80x85x15 (3 adet)
102 ÇMS-KÇ-150-90 151 90 M155x2 20 85 40 105 170 90x100x12 90x102x7/12 5x140 90x95x15 (3 adet)
103 ÇMS-KÇ-150-100 151 100 M155x2 20 85 40 105 170 100x120x12 100x112x7/12 5x140 100x105x15 (3 adet)
104 ÇMS-KÇ-160-60 161 60 M165x2 20 85 40 105 180 60x70x10 60x70x5/7 5x150 60x65x15 (3 adet)
105 ÇMS-KÇ-160-70 161 70 M165x2 20 85 40 105 180 70x80x12 70x80x5/7 5x150 70x75x15 (3 adet)
106 ÇMS-KÇ-160-80 161 80 M165x2 20 85 40 105 180 80x90x12 80x92x7/12 5x150 80x85x15 (3 adet)
107 ÇMS-KÇ-160-90 161 90 M165x2 20 85 40 105 180 90x100x12 90x102x7/12 5x150 90x95x15 (3 adet)
108 ÇMS-KÇ-160-100 161 100 M165x2 20 85 40 105 180 100x120x12 100x112x7/12 5x150 100x105x15 (3 adet)
109 ÇMS-KÇ-160-110 161 110 M165x2 20 85 40 105 180 110x125x12 110x122x7/12 5x150 110x115x15 (3 adet)
110 ÇMS-KÇ-160-120 161 120 M165x2 20 85 40 105 180 120x140x14,6 120x132x7/12 5x150 120x125x15 (3 adet)
111 ÇMS-KÇ-180-90 181 90 M185x2 20 85 40 105 200 90x100x12 90x102x7/12 5x170 90x95x15 (3 adet)
112 ÇMS-KÇ-180-100 181 100 M185x2 20 85 40 105 200 100x120x12 100x112x7/12 5x170 100x105x15 (3 adet)
113 ÇMS-KÇ-180-110 181 110 M185x2 20 85 40 105 200 110x125x12 110x122x7/12 5x170 110x115x15 (3 adet)
114 ÇMS-KÇ-180-120 181 120 M185x2 20 85 40 105 200 120x140x14,6 120x132x7/12 5x170 120x125x15 (3 adet)
115 ÇMS-KÇ-200-90 201 90 M205x2 20 85 40 105 230 90x100x12 90x102x7/12 5x190 90x95x15 (3 adet)
116 ÇMS-KÇ-200-100 201 100 M205x2 20 85 40 105 230 100x120x12 100x112x7/12 5x190 100x105x15 (3 adet)
117 ÇMS-KÇ-200-110 201 110 M205x2 20 85 40 105 230 110x125x12 110x122x7/12 5x190 110x115x15 (3 adet)
118 ÇMS-KÇ-200-120 201 120 M205x2 20 85 40 105 230 120x140x14,6 120x132x7/12 5x190 120x125x15 (3 adet)
119 ÇMS-KÇ-220-100 221 100 M225x2 20 85 40 105 250 100x120x15 100x112x7/12 5,7x209,2 100x105x15 (3 adet)
120 ÇMS-KÇ-220-110 221 110 M225x2 20 85 40 105 250 110x130x15 110x122x7/12 5,7x209,2 110x115x15 (3 adet)
121 ÇMS-KÇ-220-120 221 120 M225x2 20 85 40 105 250 120x140x14,6 120x132x7/12 5,7x209,2 120x125x15 (3 adet)
122 ÇMS-KÇ-220-130 221 130 M225x2 20 85 40 105 250 130x150x15 130x145x1016 5,7x209,2 130x135x15 (3 adet)
123 ÇMS-KÇ-220-140 221 140 M225x2 20 85 40 105 250 140x160x15 140x155x10/16 5,7x209,2 140x145x15 (3 adet)
124 ÇMS-KÇ-220-150 221 150 M225x2 20 85 40 105 250 150x170x15 150x165x10/16 5,7x209,2 150x155x15 (3 adet)
125 ÇMS-KÇ-250-100 250 100 M258x3 20 100 45 120 300 100x120x15 100x112x7/12 5,7x239,9 100x105x15 (3 adet)
126 ÇMS-KÇ-250-110 250 110 M258x3 20 100 45 120 300 110x130x15 110x122x7/12 5,7x239,9 110x115x15 (3 adet)
127 ÇMS-KÇ-250-120 250 120 M258x3 20 100 45 120 300 120x140x14,6 120x132x7/12 5,7x239,9 120x125x15 (3 adet)
128 ÇMS-KÇ-250-130 250 130 M258x3 20 100 45 120 300 130x150x15 130x145x1016 5,7x239,9 130x135x15 (3 adet)
129 ÇMS-KÇ-250-140 250 140 M258x3 20 100 45 120 300 140x160x15 140x155x10/16 5,7x239,9 140x145x15 (3 adet)
130 ÇMS-KÇ-250-150 250 150 M258x3 20 100 45 120 300 150x170x15 150x165x10/16 5,7x239,9 150x155x15 (3 adet)
131 ÇMS-KÇ-250-160 250 160 M258x3 20 100 45 120 300 160x180x15 160x175x10/16 5,7x239,9 160x165x15 (3 adet)
132 ÇMS-KÇ-250-180 250 180 M258x3 20 100 45 120 300 180x200x15 180x195x9,5/14 5,7x239,9 180x185x15 (3 adet)
